Computer Servo Carton Compressive Tester/Paper Box Compression Test Machine

Name: Computer Servo Carton Compressive TesterPaper Box Compression Test Machine
Brand: HAIDA
Price: 1 USD

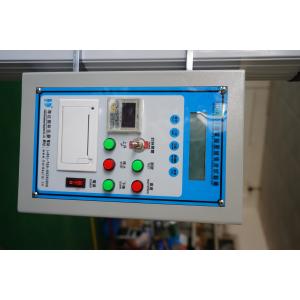

China Computer Servo Carton Compressive Tester/Paper Box Compression Test Machine factory

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-A501

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 30 Sets per Month Haida

Max. Force : 500 kg/1000KG

Motor : Panasonic servo motor

Test Speed : 10+/-3mm/min (1-300mm/min)

Test space : 600×800×800mm(can be customized)

Report output : Mini-printer, thermal printing

Data display : Load, displacement, speed

Contact Now

Computer Servo Carton Compressive Tester/Paper Box Compression Test Machine

About the machine:

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.

Design criteria:

TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

Specifications:

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester

Item	Description
Max. Force	500 kg/1000KG
Load cell	1 load cell
Control system	Microcomputer control, button type
Motor	AC motor, guild rod
Force reading	kgf, Ibf, N etc
Load cell Resolution	1/100,000
Load Precision	within ±0.5%
Parallelism of Platens	Parallel within ±5mm
Effective test area	600×800×800mm
Test speed	10 ±3mm/min
Report output	Mini-printer, thermal printing
Data display	Load, displacement, speed
Safety features	E-Stop Over-load protection Upper and lower limit switches

Features:

1. ASTM-D642 Automatic Paper Carton Compression Testing Equipment Using a single-screen operation; do not need to switch the screen;

2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.

11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

Computer Servo Carton Compressive Tester/Paper Box Compression Test Machine

Product Tags:

packaging testing instruments

paper and packaging material testing instruments

Computer Servo Carton Compressive Tester/Paper Box Compression Test Machine Images
